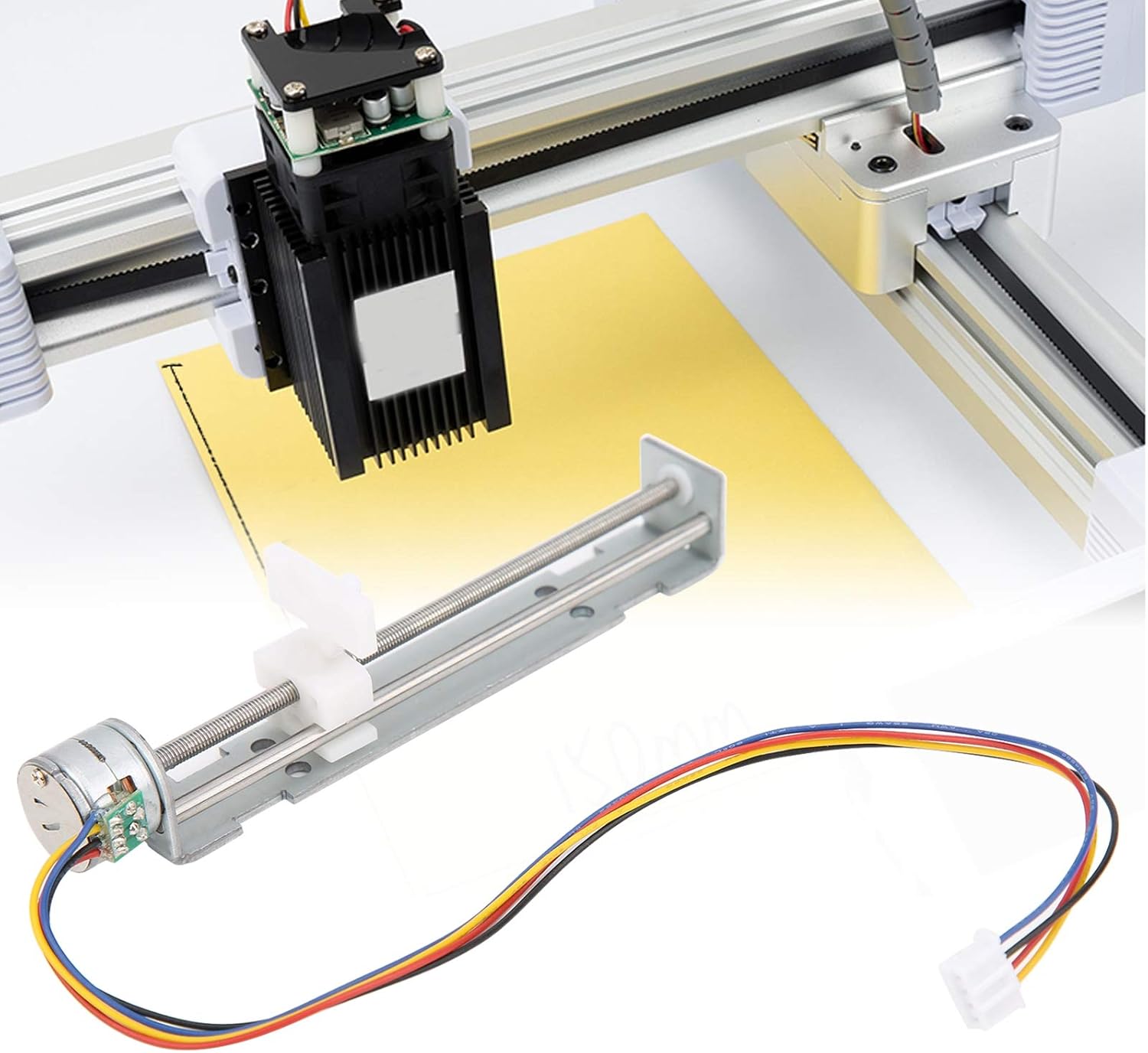

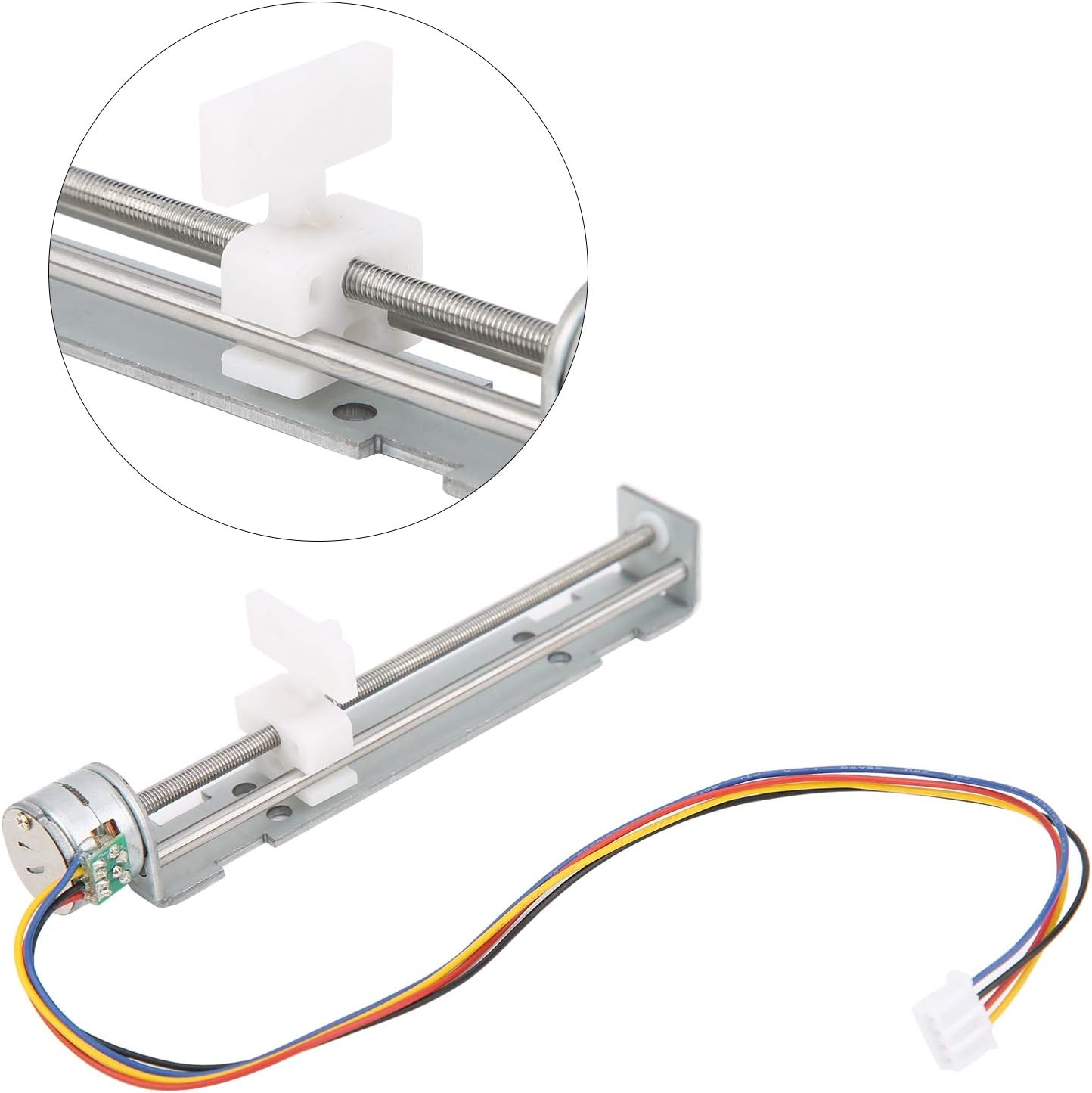

Electric Linear Guide Rail Motion Slide Actuator Module 80Mm Stroke Driven By 2Phase 4Wire Stepper Motor for DIY CNC Linear Position Kit Engraving Machine

1. Can be used in DIY small slider/project/equipment measurement/printer 2. 2?phase 4?wire micro stepper motor come with planetary gearbox, planetary gearbox reducer adopts all metal structure 3. The stroke drive accurate diagonal lines to move the metal slider up and down, the bracket is basically made of metal structure 4. Using high class materials with good quality to stable performance and high working efficiency 5. Adopt advanced technology with fine workmanship, which is a necessary linear moving parts Specification: Item Type: Stepper Motor Linear Motor Type: 2-Phase 4-wire Drive Voltage: 4-9V/100-500mA Lead Screw Length: Approx. 90mm / 3.5in Slider Stroke: Approx. 80mm / 3.1in Motor Diameter: Approx. 15mm / 0.6in Lead Screw Diameter: Approx. 3mm / 0.1in Lead Screw Pitch: 0.5mm Step Angle: 18° Phase: 15.5 ohms Overall Size: Approx. 15 x 105mm / 0.6 x 4.1in Blue A+ Black A- Red B+ Yellow B- Package List: 1 x Stepper Motor Linear Notice: Note that it's a stepper motor, directly connected to the power will not rotate, need stepper motor drive board and control board. Electric Linear Guide Rail Motion Slide Actuator Module 80mm Stroke Driven by 2Phase 4Wire Stepper Motor for DIY CNC Linear Position Kit Engraving Machine

• 【Practical】Adopt advanced technology with fine workmanship, which is a necessary linear moving parts, very practical in industry.
• 【Precise】The stroke drive accurate diagonal lines to move the metal slider up and down, the bracket is basically made of metal structure.
• 【Stable】Using high class materials with good quality to guarantee stable performance and high working efficiency.
• 【Stepper Motor】2phase 4wire micro stepper motor come with planetary gearbox, planetary gearbox reducer adopts all metal structure.
• 【Application】The linear actuatior can be used in DIY small slider/project/equipment measurement/CNC machine.
