IP67 Waterproof 4-in-1 Rosenberger Mini FAKRA Female to FAKRA Female RF Coaxial Cable Four-Cavity AMK14K-1M4Z5-Z to Single-Port 59Z163-003-Z Vehicle LVDS Cable for ADAS, IVI, Autonomous Driving(0.5m)

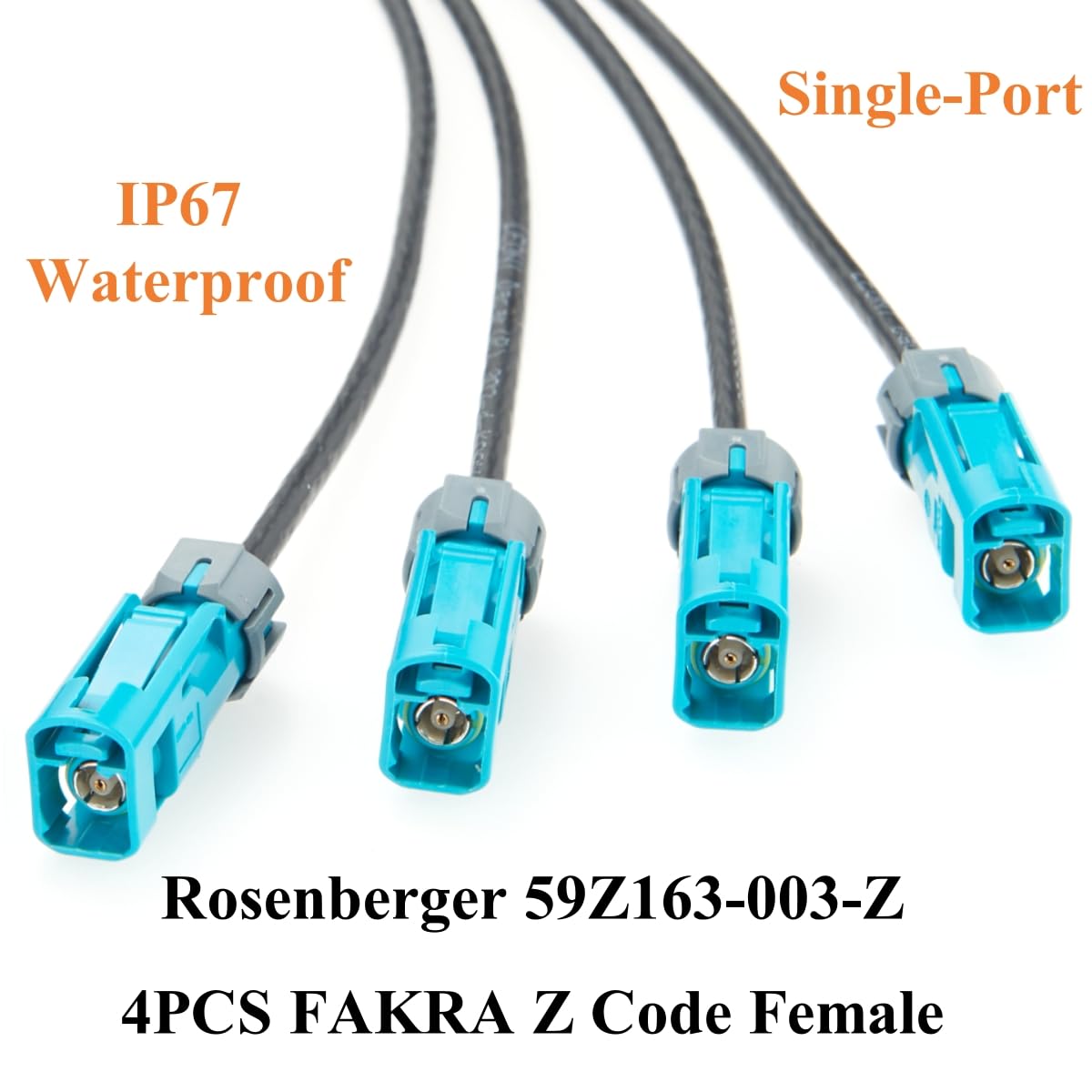

Specification:Connector 1: Quad HFM Mini FAKRA Connector, Z Code Female Jack, Rosenberger AMK14K-1M4Z5-ZConnector 2: 4PCS X FAKRA Connector, Single-Port, Z Code Female Jack, Rosenberger 59Z163-003-Z Connector Color: Water Blue Waterproof Rating: IP67Cable Length: 0.5m, Or OEMConnector Orientation: Straight Impedance: 50 OhmFrequency Range: DC-6GHzOperating Temperature Range: -40°C to +105°CWire: LEONI DACRA 302-4 Coaxial Cable

• ✔Original Connector – 4 In 1 Rosenberger Mini Fakra to Four Ports Fakra Cable, Equipped with Original IP67 Rosenberger Quad HFM Mini Fakra Z Code Female Connectors (AMK14K-1M4Z5-Z), and Original Rosenberger Waterproof Fakra Z Code Female Connectors (59Z163-003-Z).
• ✔IP67 Waterproof & Shielded Cable – The Mini Fakra and Fakra connectors Rated for IP67. The Automotive LVDS Data Cable With LEONI DACRA 302-4 Coaxial shielded cable,50Ω Impedance, DC-6GHZ Frequency, and minimizing electromagnetic interference (EMI).
• ✔Application – The Mini Fakra Z Code Female to Fakra Female RF Coaxial Cable for ADAS, In-Vehicle Infotainment (IVI), FPD-Link GMSL Cameras, Surround-View and Parking Assistance, Automotive Camera, Vehicle Telematics, TCU, V2X, GPS Navigation, Autonomous Driving and so on.
• ✔Custom Cable – We are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
